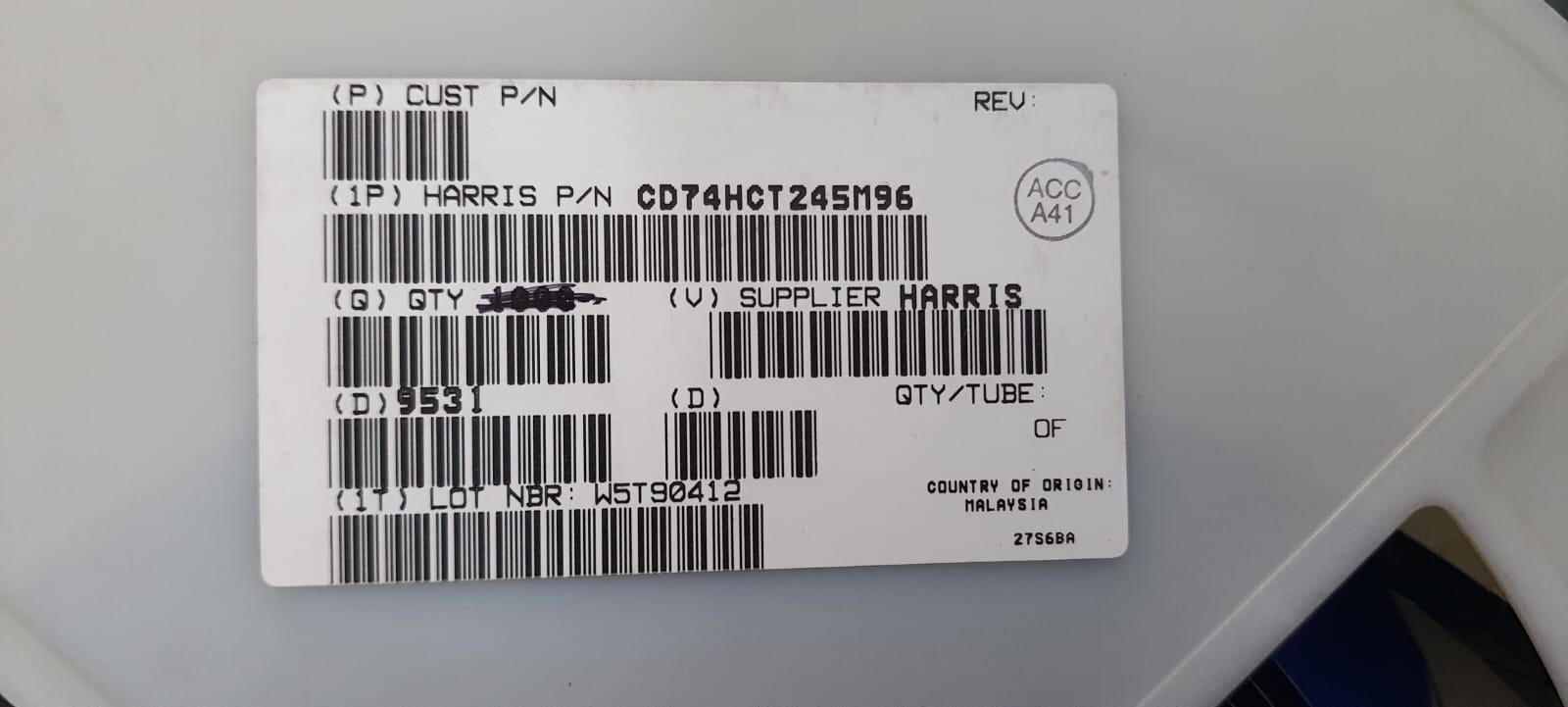

HCT245 IC SMD Octal Bus Transceiver Supplier in India
Looking for a reliable
HCT245 IC SMD Octal Bus Transceiver Supplier in India?
The 74HCT245 is an 8-bit, non-inverting bus transceiver designed
for bidirectional communication between digital data buses.
It features three-state outputs, direction control and output
enable functionality for managing data transfer between
connected electronic circuits.
Output Drive Capability: 15 LSTTL Loads •TTL/NMOS-Compatible Input Levels •Outputs Directly Interface to CMOS, NMOS, and TTL •Operating Voltage Range: 4.5 to 5.5 V •Low Input Current: 1.0 A •High Noise Immunity Characteristic of CMOS Devices •In Compliance with the Requirements Defined by JEDEC Standard No. 7A •ESD Performance: HBM 2000 V; Machine Model 200 V •Chip Complexity: 308 FETs or 77 Equivalent Gates •This is a Pb-Free Device
Product Overview
The HCT245 IC is used in digital electronic circuits that require
controlled, two-way data communication. Its eight channels allow
data to move between A and B buses, while the direction-control
input determines the transfer direction. The output-enable input
can place the outputs in a high-impedance state to isolate the
buses when required.
The HCT logic family features TTL-compatible input levels.
This makes the device suitable for compatible digital interface
designs, PCB assemblies and electronic control systems.
Technical Specifications
| Part Number |
74HCT245 |
| Product Type |
Octal Bus Transceiver IC |
| Logic Family |
HCT – High-Speed CMOS, TTL-compatible inputs |
| Number of Bits / Channels |
8-bit / 8 channels |
| Data Direction |
Bidirectional, controlled by DIR input |
| Output Type |
Three-state outputs |
| Logic Function |
Non-inverting bus transceiver |
| Operating Supply Voltage |
4.5 V to 5.5 V for common 74HCT245 variants |
| Output Enable |
Active-low OE control |
| Package |
SMD; confirm exact package code before ordering |
| Manufacturer |
Depends on the selected manufacturer and part number |
Applications of HCT245 IC
- Digital bus interfacing and data transfer
- PCB assemblies and electronic control boards
- Microcontroller and digital logic interfaces
- Industrial electronic equipment
- Electronic equipment repair and component replacement
- Compatible data-bus buffering applications
How to Select the Correct HCT245 IC
Before ordering, verify the full manufacturer part number,
SMD package, pin configuration, supply voltage and temperature
rating. Check the package footprint against your PCB and ensure
the device's electrical characteristics match the original
component. Similar HC and HCT parts may have different input
logic thresholds, so confirm the required logic family.
HCT245 IC Supplier in India
For electronic component sourcing in India and nearby industrial
areas such as Pimpri-Chinchwad, Bhosari, Chakan, Talegaon and
Ranjangaon, provide the exact part number, package type and
required quantity when requesting a quotation.
Whether you need HCT245 ICs for PCB manufacturing, electronic
equipment maintenance or industrial control applications,
confirm product availability and manufacturer specifications
before placing your order.
Request a Quote
Contact your electronic components supplier with the required
quantity, manufacturer preference and SMD package details to
enquire about availability and pricing for the
HCT245 IC in India.
